RJ45 Modular Plugs for Cat5/Cat5e Stranded Ethernet Cable, 100 pcs/pack - PrimeCables®

For UTP Cat5, Cat5e - Designed for Stranded Cable

Visit the PrimeCables® store

Model#: Cab-7246

( 48 Customer Reviews )

PrimeCables Cab 7246 Cat5e RJ 45 Jacks RJ 45 MODULAR PLUGS RJ45 100 PACK FOR STRANDED CABLE PrimeCables

$13.19

Market Price:$20.88

Quantity:

- +

Add To Wish List

In Stock: Order now to ship out in 1-2 business days

Earn 264 S-Points Rewards

1-year warranty

PRODUCT HIGHLIGHTS

Gold plated contacts

Clear plastic housing

For Stranded wire cables

Crimp on RJ45 connectors

WHY WE LOVE THIS

Product Overview

Specifications

Customer Reviews

FAQ'S

Product Overview

RJ45 Modular Plugs for Cat5/Cat5e Ethernet Cable

For UTP Cat5, Cat5e - Designed for Stranded Cable

Modular plugs are designed to terminate stranded cables. Manufactured with gold-plated contacts for reliable data transfers. Use for voice/data applications.

How to Crimp On Ethernet RJ-45 Plugs

Step 1: Cut your cable and strip about 1” of the outer jacket off the tip.
Step 2: Sort your wires in the proper pinout configuration and lay them out side by side.
Step 3: Snip the ends of the wires about a ½ inch from the outer jacket to make the end flush.

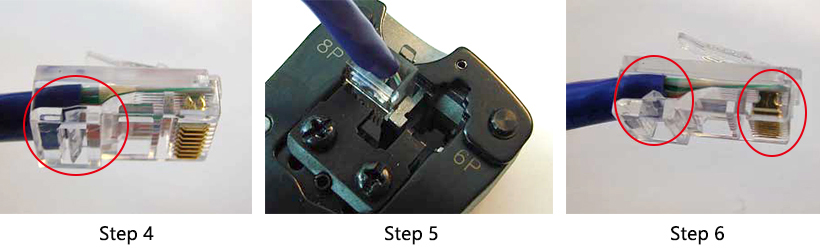

Setp 4: Keeping the wires in proper order, insert them into the connector. Push the wires all the way up so that the ends of the wires seat complete up to the end of the connector. Squeeze the jacket of the cable into the connector up past the jacket clamp.
Step 5: I Insert the plug into your crimper and crimp down.
Step 6: You should end up with a finished connector with the gold contacts pushed in place and the outer jacket of the cable secured to the connector by the jacket clamp.
