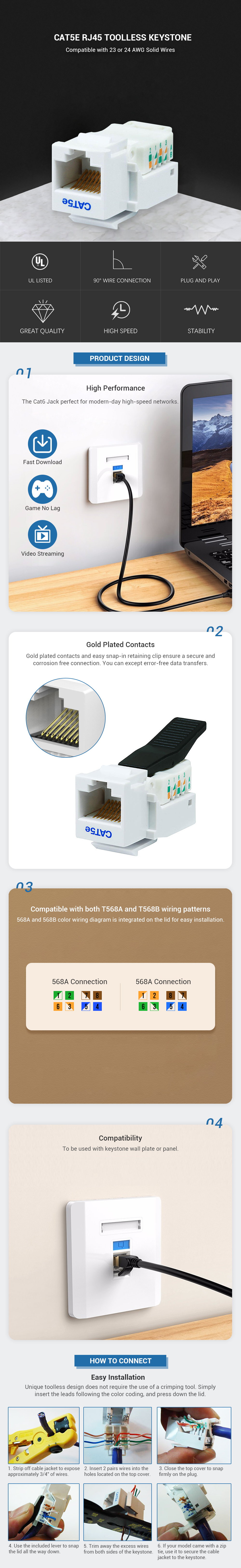

Cat5e RJ45 Toolless Keystone Jack - White

Comes with lever for ease of installation and retaining clip for secure connection

This product is intended for use with 23~24 AWG Solid Ethernet cable. It will not work well with stranded Ethernet cable. If you're using stranded Ethernet cable, please use a punch-down style keystone jack. Easy to use, toolless (no soldering or screwdriver req.) modular CAT 5e Keystone jack. RJ45 female connector. To be used with keystone wall plate or panel. Wiring diagram on clip.

How to Connect

• Step 1. Strip about 1” off of the outer jacket of the cable. If using Cat6 cable, trim off the spleen so that it doesn’t get in the way of the wires.
• Step 2. Open the lid of the keystone and insert the wires through the loop at the end. Untwist and splay out the wires and sort them through the appropriate slots on the lid. Follow the color coding diagram on the side of the lid for the proper wiring standard you wish to use.
• Step 3. Close the lid and squeeze tightly.
• Step 4. Use the included lever to snap the lid all the way down.
• Step 5. Trim away the excess wires from both sides of the keystone.
• Step 6. If your model came with a zip tie, use it to secure the cable jacket to the keystone.
