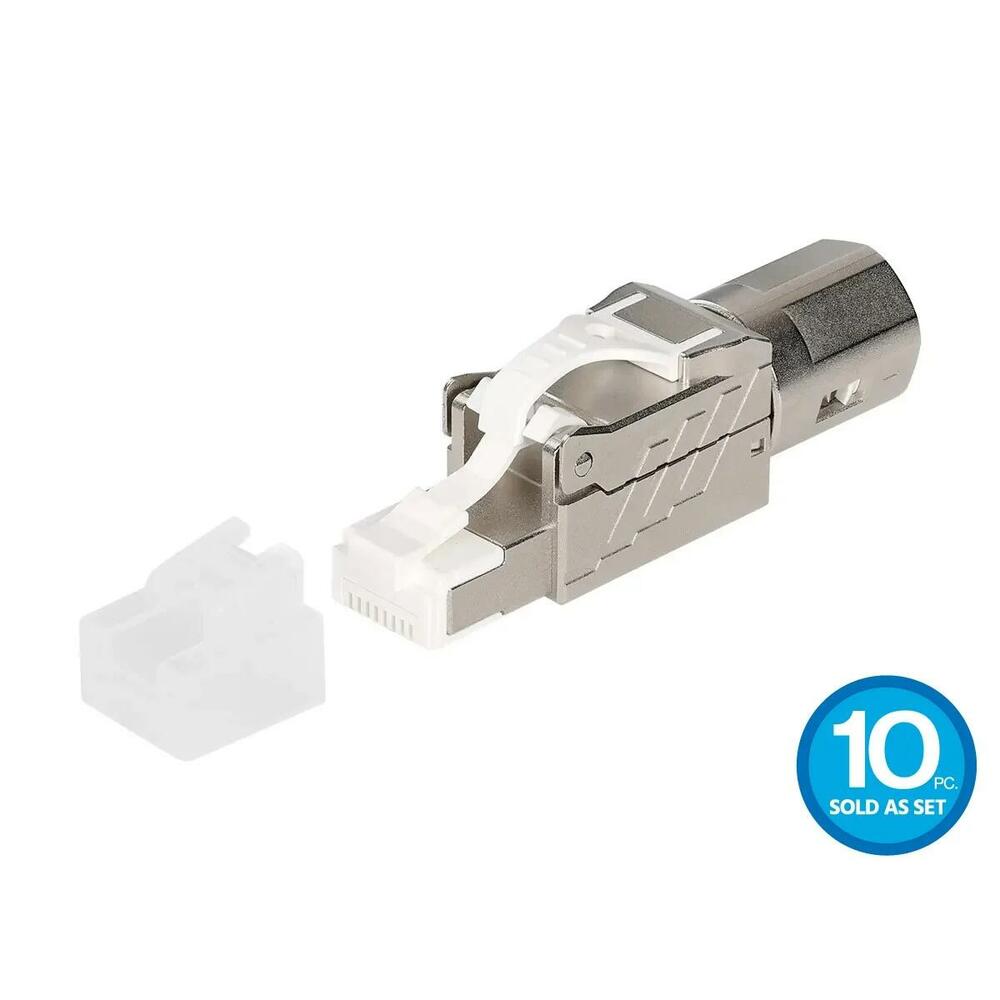

Cat7 or Cat6A RJ-45 Field Connection Modular Plug

Shielded for 23/24AWG Installation Cable

Features

• Wire Connection: Stranded wire AWG 27/7 to 22/7, wire diameter from 0.46 to 0.76 mm
• Wire Connection: Solid wire AWG 26/1 to 22/1, wire diameter from 0.4 to 0.76 mm
• Transmission Characteristics: Cat6a per IS0/IEC 11801 Ed.2.2:2011-06
• Complies with class Ea to ISO/EIC 11801 Ed.2.2.2011-06, DIN EN 50173-1:2011-09 10 Gbit
• IEEE 802.3an
• Operating temperature: -40 ~ +60°C
• Relative humidity: 85% (+30°C), Air pressure: 70-106Kpa
• Gold Plated Bronze Blade: bronze and gold plating (3-50 µinch}, mating durability not less than 750 cycles
• Made from Kirsite \ PC or PCB(UL94VO)
• Intermediate resistance: no more than 20 megohm in normal atmospheric pressure (not including bulk resistor)
• Insulated resistance: no less than 1,000 megohm in normal atmospheric pressure
• 1,000 VDC (700 VAC)
• Retention strength: 7.7kg between jack and plug

Installation Guide

1. Remove the cable tie before installation.
2. Insert the cable into the strain relief boot, then strip off 30mm of the cable jacket and fold back the braided and drain wires.
3. Fan out all four twisted wire pairs, and allocate each conductor into the proper slot following the color coding on the wires and wiring cap, then trim the ends of the conductors.
4. Place the wiring cap onto the plug.
5. Use pliers to clamp the wiring cap closed until it completely snaps in to complete the connection.
6. Close the plug cover and make sure the drain wire is in proper contact with the grounding clip. Pull back the strain relief boot to cover the plug and fasten the supplied cable tie to secure grounding contact.

Unloading the Cable

Cut off the cable tie, and remove the boot. Using a flat screw driver, gently pry open the plug cover one end at a time.
