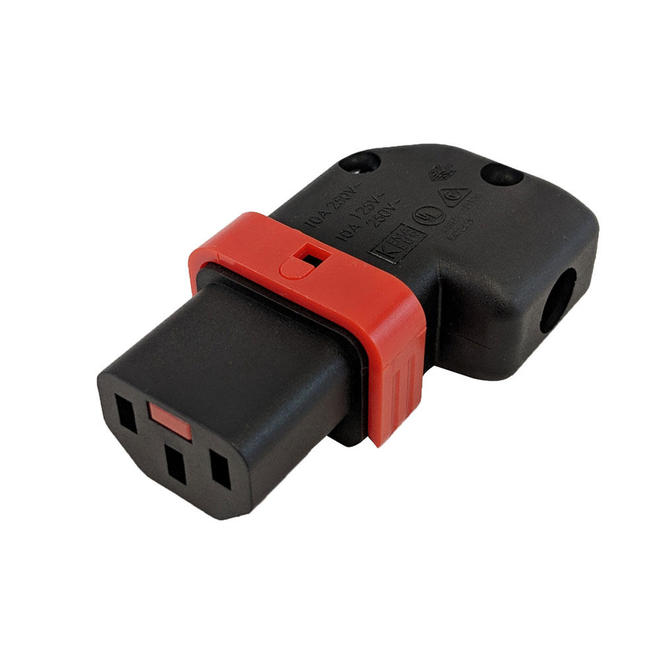

C13 Locking Power Cord Connector - Screw On - Right or Left Angle

C13 Locking Power Cord Connector - Right or Left Angle

Prevents accidental disconnection of computer, PDU's and servers

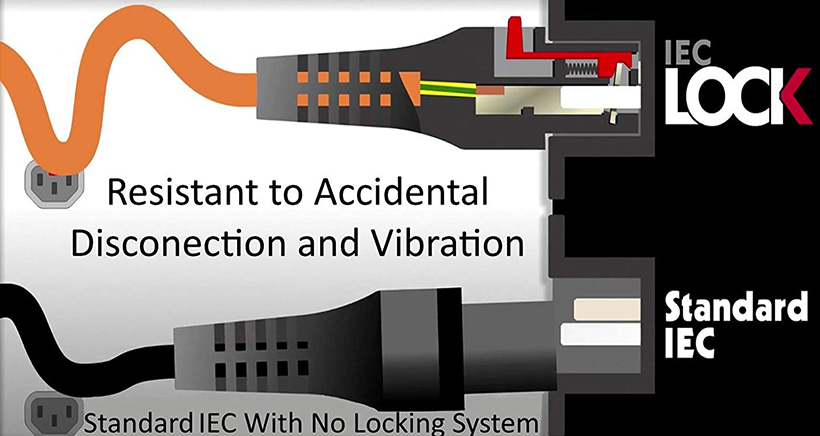

This C13 locking power cord connector is designed to guard against accidental disconnection of computers, PDU’s servers and most network devices, the new IEC Lock+ Rewirable adds additional flexibility and ease of use, as well as LSZH (low smoke zero halogen) compatibility, to its list of features. The beautifully straightforward high-visibility locking mechanism is combined with a simple release mechanism which allows for disconnection from all sides. Ideal as a retrofit solution, it requires no other equipment or special inlets to secure it, it is simply plugged into an appliance as you would a standard IEC lead. The red cage release mechanism also marks the connector out from standard IEC leads to allow maintenance and other data center staff to identify critical power sources. The orientation of this connector can be changed from right-angle to left-angle.

Changing the Orientation of the Outer Housing

1. Remove the handle form the connector by sliding forward and pulling away from the connector.
2. Remove fixing screws from housing.
3. Remove the top and bottom outer housing.
4. Switch orientation and replace outer housing. The top housing should now be the bottom and vice versa.
5. Once the outer housing has been replaced, the handle can be replaced.

Features

• No more accidental unplugging or disconnections
• Protection appliances against discount ion from vibration
• Help protect your equipment from accidental disconnection
• Keeping vital equipment running at all times, preventing down time
• Works with many cable sizes: N. American 18-14AWG and International 0.75-1.50mm
• PA130100RBK Requires no other equipment or special inlets to secure it in place (UL Listed)
• Right or left angle rewireable / user attachable - offering total flexibility when assembling cables
